Module Power Connector DJL37

Product Detail

This series products of contact with gold or silver plated surface treatment; the plug pinjack socket device, the terminal is press-fit, welding and board ( PCB) three type. This series products of each type of pin usually have three lengths can be selected, respectively is the long pin, standard type pin and short pin, to meet the needs of users of different needs; can also be based on user requirements custom. Note: Spring crown material selection is the high elasticity high strength beryllium bronze. With spring crown structure with smooth arc contact face jack, plug is soft, and can ensure the maximum contact surface. Thus the spring crown structure of the jack contact resistance is low ( low pressure ), the temperature rise is small, and seismic resistance, anti-vibration ability is very high, so the spring crown structure of the products with high.

Technical Parameters:

Rated voltage (Volts)	250V
Relative humidity	90%-95% (40±2°C )
Electrical characteristics	Below table

Life	800
Working Temperature (°C)	-55°C to+125°C
Vibration	10 ~ 2000Hz 147m/s²

Electrical characteristics:

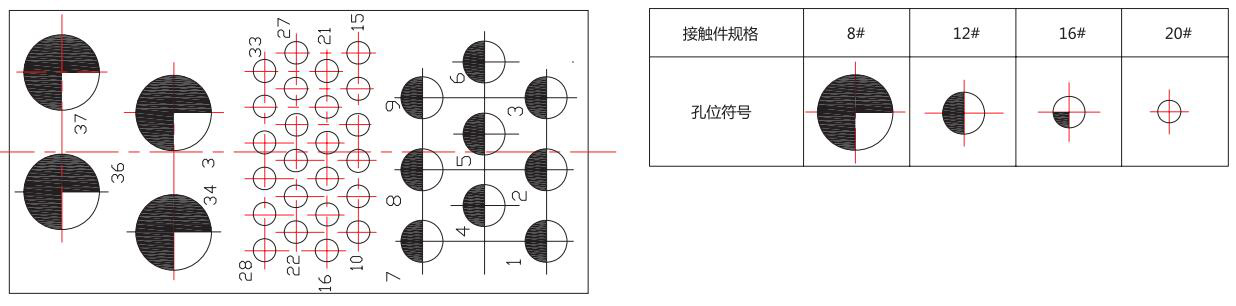

Model	Contact size	Quantity	Hole no.	Rated current(A)	Contact resistance（mΩ）	Withstand voltage（VAC）	Insulation Resistance（MΩ ）
DJL-37	8#	4	34-37	75	<0.5	>2000	>3000
	12#	9	1~9	35	<1	>2000	>3000
	20#	24	10-33	5	<5	>1000	>3000

（Pin Sinde Contacts & Socket Sinde Contacts）:

Contact Size 20# Pin

Termination Type	Contact part No.	Dimensions	-A- mm	-B- mm	-C- mm	-D- mm
Crimp,Standard	DJL37-01-07YD		8.1	N/A	1.20	1.01
Crimp,Premate	DJL37-01-07YE		11.9	N/A	1.20	1.01
Crimp,Postmate	DJL37-01-07YF		6.8	N/A	1.20	1.01
Solder cup,Standard	DJL37-01-07HD		8.1	4.6	1.30	1.01
Solder cup,Premate	DJL37-01-07HZ		11.9	4.6	1.30	1.01
Solder cup,Postmate	DJL37-01-07HF		6.8	4.6	1.30	1.01
PCB tail,Standard	DJL37-01-07BD		8.1	3.9	1.00	1.01
PCB tail,Premate	DJL37-01-07BZ		6.8	3.9	1.00	1.01
PCB tail,Postmate	DJL37-01-07BF		6.8	3.9	1.00	1.01

Contact Size 20 # Socket

Termination Type	Contact part No.	Dimensions	-A- mm	-B- mm
Crimp	DJL37-02-04YB		N/A	1.20
Solder cup	DJL37-01-07HD		4.8	1.30
PCB tail	DJL37-02-04BB		4.3	1.00

Contact Size 12# Pin

Termination Type	Contact part No.	Dimensions	-A- mm	-B- mm	-C- mm	-D- mm
Crimp,Standard	DJL37-01-09YA		10.9	N/A	2.60	2.38
Crimp,Premate	DJL37-01-09YB		11.7	N/A	2.60	2.38
Crimp,Postmate	DJL37-01-09YC		9.9	N/A	2.60	2.38
Solder cup,Standard	DJL37-01-09HA		10.8	4.1	2.60	2.38
Solder cup,Premate	DJL37-01-09HB		11.5	4.1	2.60	2.38
Solder cup,Postmate	DJL37-01-09HC		69.7	4.1	2.60	2.38
PCB tail,Standard	DJL37-01-09BA		10.8	5.1	2.38	2.38
PCB tail,Premate	DJL37-01-09BB		11.5	5.1	2.38	2.38
PCB tail,Postmate	DJL37-01-09BC		9.7	5.4	2.38	2.38

Contact Size 12 # Socket

Termination Type	Contact part No.	Dimensions	-A- mm	-B- mm
Crimp	DJL37-02-05GY		N/A	2.60
Hot plug crimp	DJL37-02-05GYR		N/A	2.60
Solder cup	DJL37-02-05GH		4.8	2.60
Hot plug solder cup	DJL37-02-05GHR		4.8	2.60
PCB tail	DJL37-02-05GB		5.5	2.38
Hot plug PCB tail	DJL37-02-05GBR		5.5	2.38

Contact Size 8# Pin

Termination Type	Contact part No.	Dimensions	-A- mm	-B- mm	-C- mm	-D- mm
Crimp,Standard	DJL37-01-05YA		10.8	N/A	4.5	3.60
Crimp,Premate	DJL37-01-05YB		12.0	N/A	4.5	3.60
Solder cup,Standard	DJL37-01-03HA		10.8	4.1	4.8	2.38
Solder cup,Premate	DJL37-01-03HB		12.0	7.0	4.8	3.60
PCB tail,Standard	DJL37-01-03BA		10.8	7.0	3.60	3.60
PCB tail,Premate	DJL37-01-03BB		12.0	7.0	3.60	3.60
